High and low temperature electronic universal testing machine

It is mainly used to test the mechanical properties of metal, nonmetal and products, such as tensile, compression, bending, shearing, tearing and peeling. It can realize the combined command control of stress, strain and speed. According to GB, JIS, ASTM, DIN and other standards, the maximum test force value, breaking force value, yield strength, upper and lower yield points, tensile strength, various elongation stress, various elongation, compressive strength, elastic modulus and other parameters can be automatically calculated, and the test report curve can be printed at any time.

Using the configured high and low temperature test box, the environmental simulation test at the corresponding temperature can be completed.

We not only provide standardized machines, but also customize machines and LOGO according to customer requirements. Please tell us your requirements and we will try our best to meet your needs.

Please provide the test standard you need to our company, our company will help you customize the test machine that meets the test standard you need.

Send email to us

Product Detail

PARAMETER

Product Tags

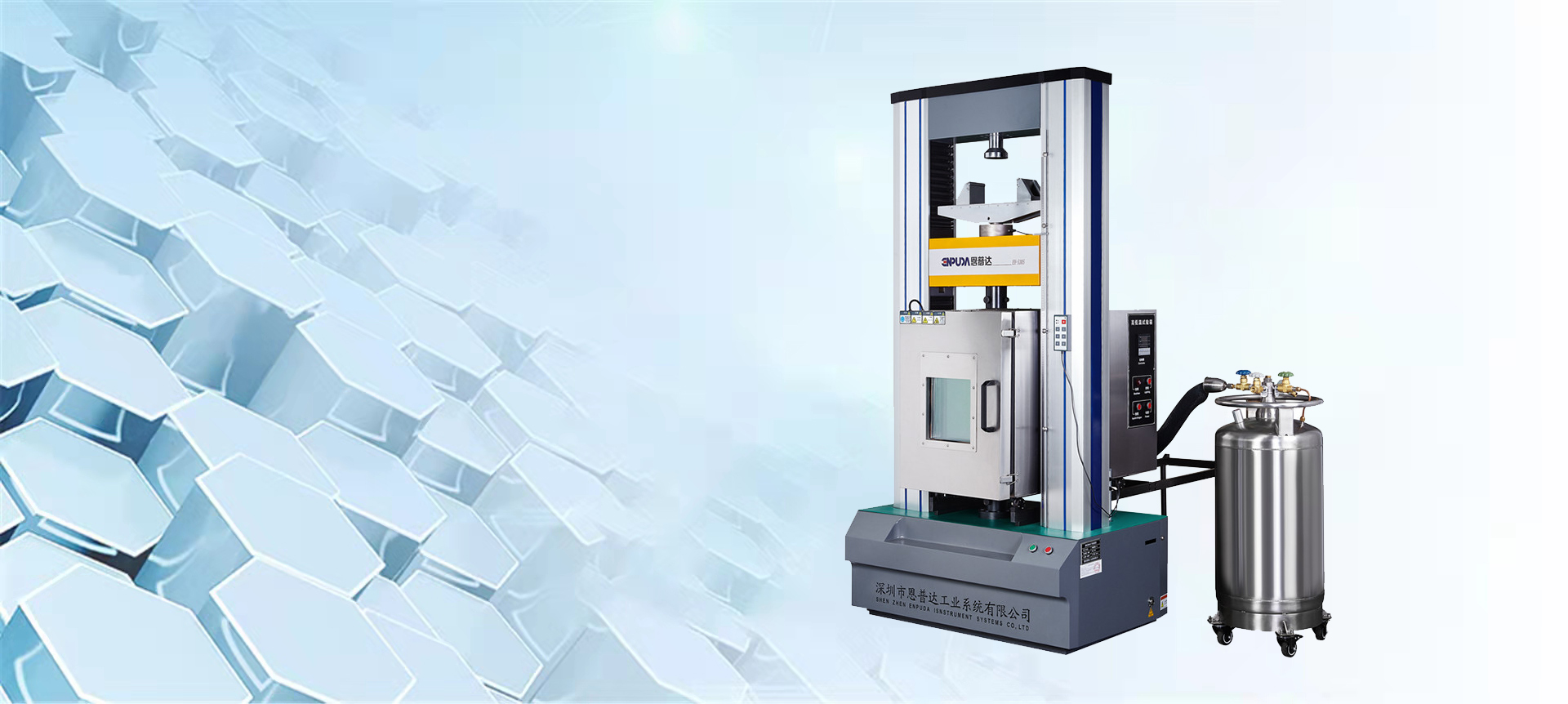

High And Low Temperature Electronic Universal Testing Machine

APPLICATION AREA

The computer-controlled electronic universal testing machine is mainly used for testing the mechanical properties of metals, non-metals, composite materials and products such as tensile, compression, bending, shearing, tearing, peeling, etc. Complete the environmental simulation test at the corresponding temperature.

Panasonic full-digital AC servo controller is used to control the high-precision, high-response frequency Panasonic AC servo motor, drive the arc toothed synchronous belt deceleration system, and drive the lead screw to rotate and load through the synchronous toothed belt to ensure high transmission system efficiency. Low noise, stable transmission, high transmission precision, long working life, and guarantee speed accuracy within ±0.5%.

The test box is installed with guide rails, which can be moved back and forth to meet the requirements of high and low temperature environments and conventional tests. It has a front-opening sealing device with a visual window, which not only ensures the convenience of use, but also achieves accurate measurement data. It consists of a box, a high temperature heating system, a liquid nitrogen refrigeration system, a temperature controller, an extension rod, a mobile bracket, and a water cooling system.

The high and low temperature electronic universal testing machine is widely used in various industries and is a commonly used testing equipment in enterprises, scientific research units, colleges and universities, engineering quality supervision stations and other departments.

Customized service / Test standard

We not only provide standardized machines, but also customize machines and LOGO according to customer requirements. Please tell us your requirements and we will try our best to meet your needs.

Please provide the test standard you need to our company, our company will help you customize the test machine that meets the test standard you need

Testing machine standard

1. It is manufactured according to GB / t2611-2007 general technical conditions for testing machines and GB / T 16491-2008 electronic universal testing machines;

2. Verification and acceptance shall be carried out according to GB / t12160-2002 "provisions for extensometers for uniaxial test" and GB / t16825-2008 "inspection of tensile testing machines";

3. It is applicable to GB, JIS, ASTM, DIN and other standards.

Testing standard

Performance features / advantages

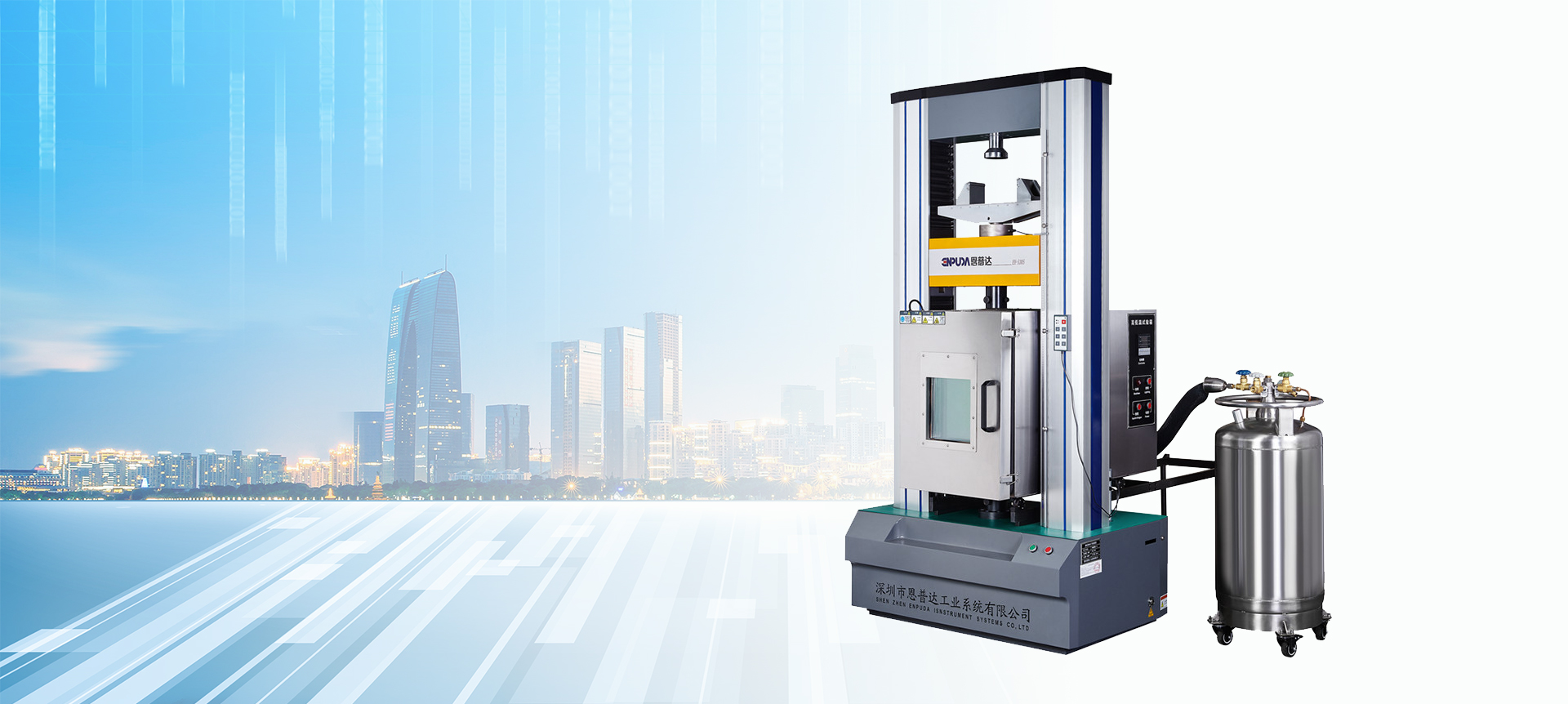

High And Low Temperature Electronic Universal Testing Machine (2)

1. Exquisite and elegant design: our company has always attached great importance to the appearance of products and developed many products comparable to foreign models. Some of the testing machines have been protected by national appearance patents;

2. Arc tooth synchronous belt deceleration system: it has the advantages of high efficiency, long life, low noise and maintenance free;

3. High precision ball screw loading: stable loading, long service life, good long-term stability and energy saving;

4. It adopts the new generation DSC chip system newly developed by the company: it is the most advanced controller with the highest integration degree and the highest control speed in China;

5. User operation interface: simple and reliable human-computer interaction interface and data processing interface to complete different experimental requirements selected by users;

6. Open data structure: both result parameters and process data can be called randomly by users, which is very convenient for scientific research and teaching;

7. User self editing scheme and report function: it can edit special scheme according to all standards at home and abroad, which is convenient for real-time calling; data can be imported into EXCEL form to facilitate user's post-processing;

8. A variety of protection measures: such as electronic limit protection, over-current, over-voltage and other power links of electrical protection, software overload, over displacement protection, mechanical mandatory safety limit protection, etc.

Key Parts

1. Electronic universal testing machine remote control

2. Special high temperature box for electronic universal testing machine

3. High-precision ball screw, high precision, stable operation and long service life

4. SSRT high temperature fixture（Design according to the actual needs of users）

5. High-precision load sensor, American Transcell brand

6. Using Japanese Panasonic servo motor, stable and durable performance, high precision

7. Liquid ammonia refrigeration system

Previous: Quiet hydraulic servo oil source

Next: Slow strain rate stress corrosion tester

Model of testing machine	EH-5104	EH-5204	EH-5504	EH-5105	EH-5205	EH-5505
		5304			5305	5605
Maximum load（kN）	10 or less	20	50	100	200	500
		30			300	600
Load accuracy	Better than indicated value ±1%、±0.5%
Displacement and deformation accuracy	Better than indicated value ±1%、±0.5%
Resolution of test parameters	The load and deformation are not graded and the resolution remains unchanged ±1/350000FS (full scale)
Test space（mm）	800	800	800	700	500	500
Effective width（mm）	400	400	560	560	600	650
Motor power （Kw）	0.75	0.75	1	1.5	3	5
Dimensions（mm）	950x460x2050	970x480x2050	1100x600x2050	1080x660x2200	1100x750x2200	1260x700x2550
Main engine weight（Kg）	200	320	500	850	1500	2500
Remarks: The company reserves the right to upgrade the instrument without any notice after the update, please ask for details when consulting.
