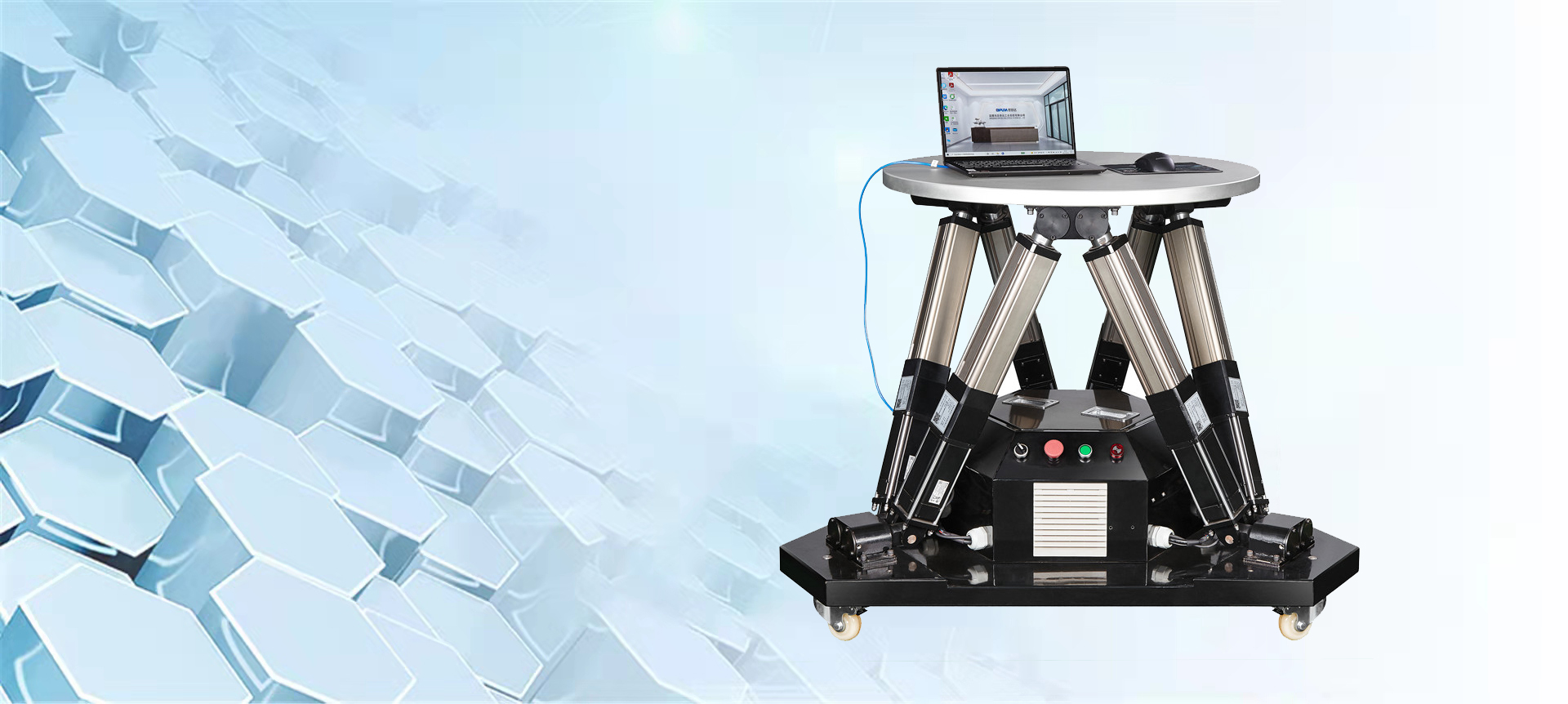

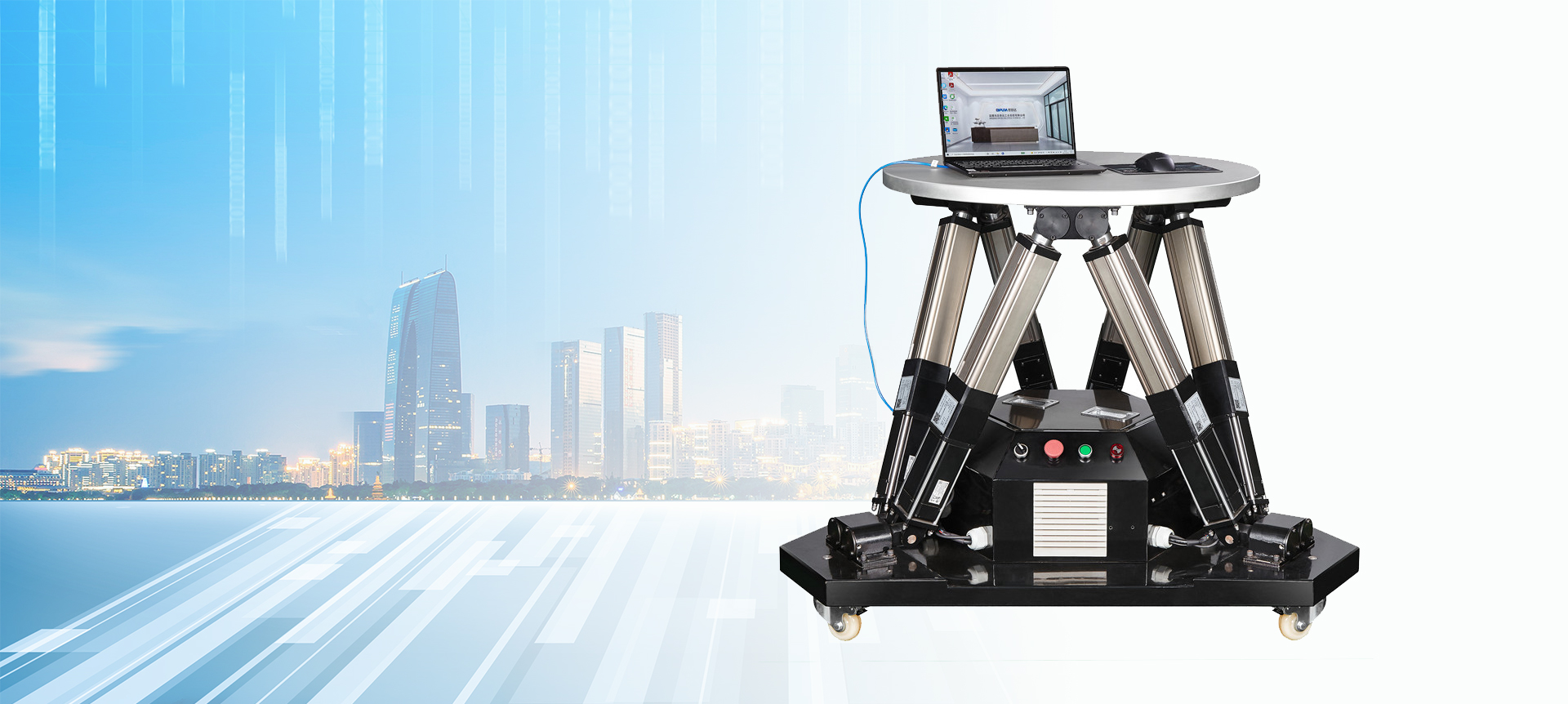

China wholesale Price Of Hydraulic Servo Actuator - High-quality electro-hydraulic servo 6-DOF motion platform for car driving simulatorseismic simulator, etc. – Enpuda Detail:
APPLICATION AREA
Electro-hydraulic servo six-degree-of-freedom motion platform (Stuart motion platform) is widely used in various sports, rail vehicles, training simulators, car driving simulation platforms, ship simulators, earthquake simulators, and dynamic movies, entertainment equipment and other fields.
The Enpuda hydraulic six-degree-of-freedom motion platform is flexible and convenient to operate. Various simulated samples can be placed on the upper platform. The advanced electric servo drive technology is used to load, and the high-precision dynamic displacement sensor measures the position and motion attitude of the test piece.
The all-digital measurement and control system realizes the closed-loop control of force, displacement and deformation. The test software adopts English operation interface, powerful data processing ability, and the movement process is all controlled by computer.
The all-digital measurement and control system realizes the closed-loop control of force, displacement and deformation. The test software adopts English operation interface, powerful data processing ability, and the movement process is all controlled by computer.
It is an ideal cost-effective test system for scientific research institutes, metallurgical construction, national defense industry, colleges and universities, aerospace, rail transit and other industries.
Customized service / Test standard
We not only provide standardized machines, but also customize machines and LOGO according to customer requirements. Please tell us your requirements and we will try our best to meet your needs.
Testing standard
Performance features / advantages
| 1. Test platform host: The upper and lower high-strength structural platforms are connected by ball hinges and universal joint hinges to achieve degrees of freedom, forming a closed frame structure, with high rigidity, no backlash and good stability. |
| 2. Key components: adopt international famous brands-American Delta control system, American MOOG servo valve, German haenchen oil cylinder, American MTS displacement sensor, Japanese Syusuke Fuji oil pump, etc., to ensure long-term stable operation of the system. |
| 3. Software algorithm: The inverse equation of position is deduced by Euler angle and rotation transformation, and the forward solution of position is carried out by numerical iteration method. |

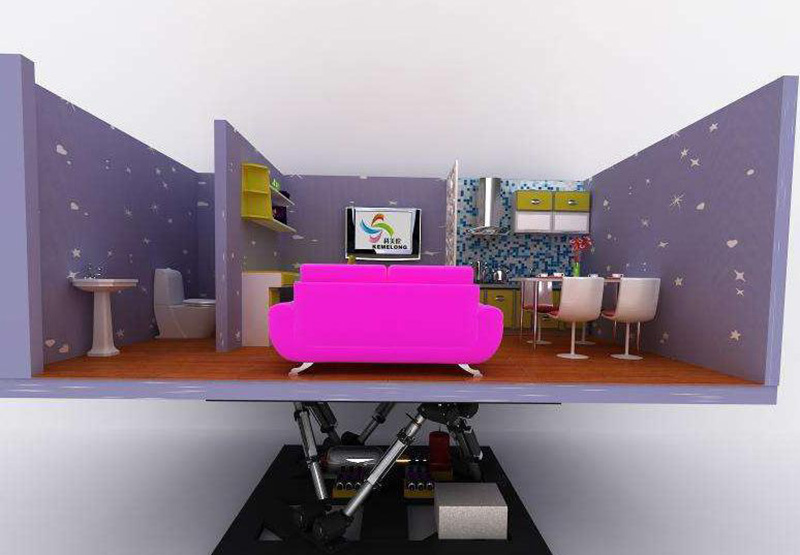

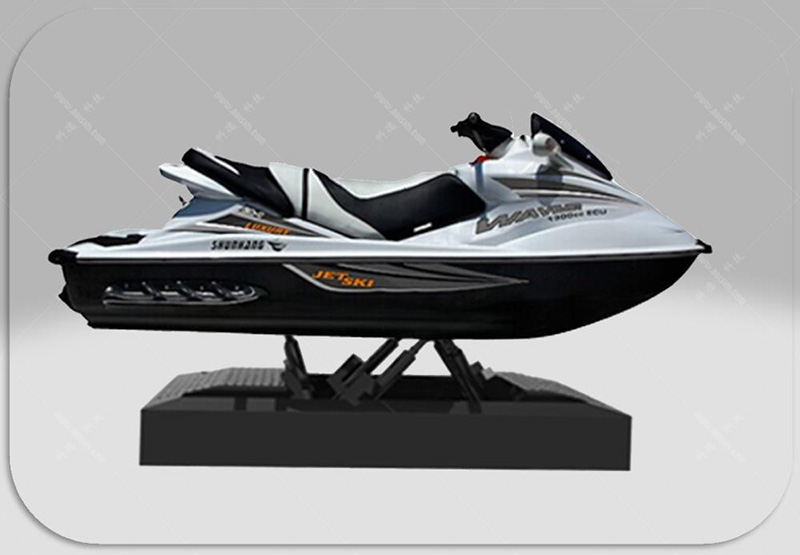

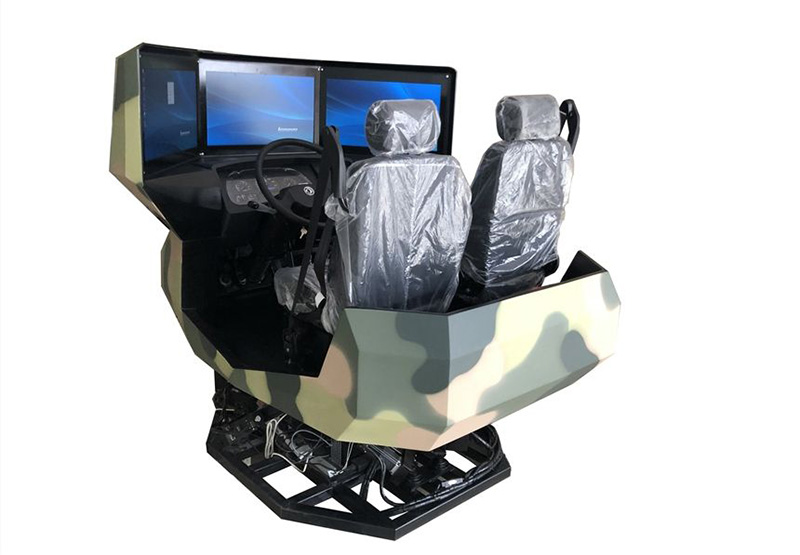

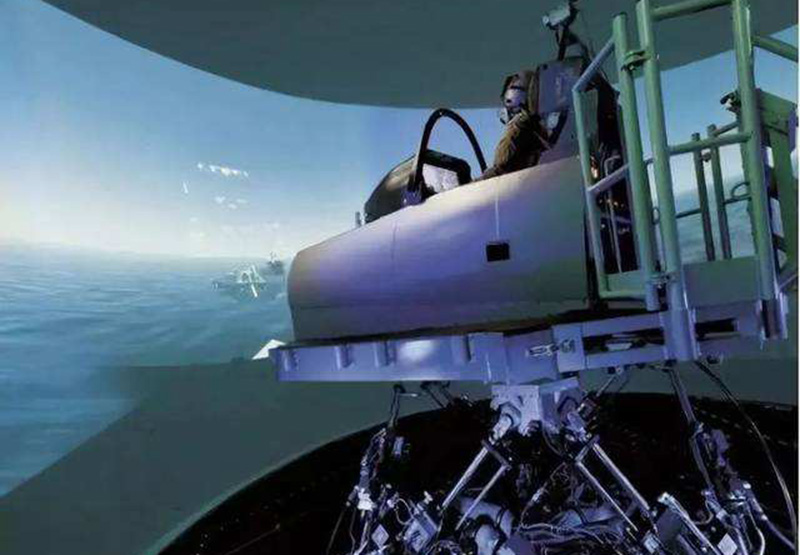

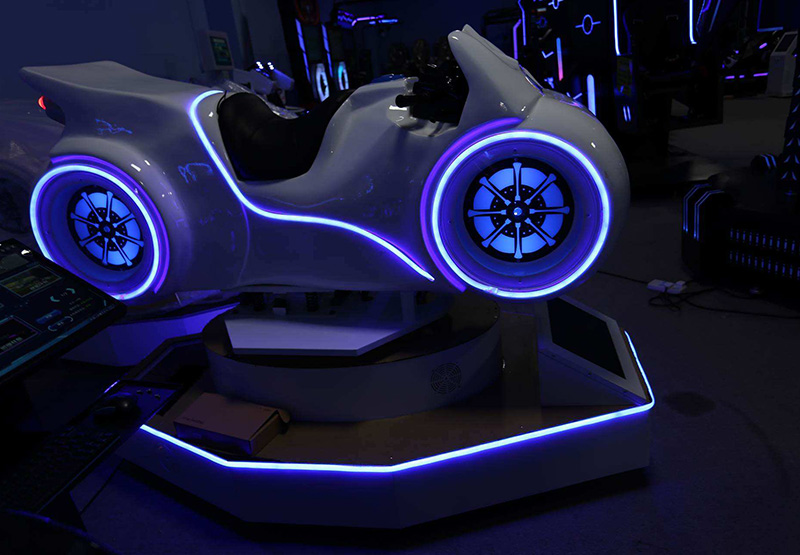

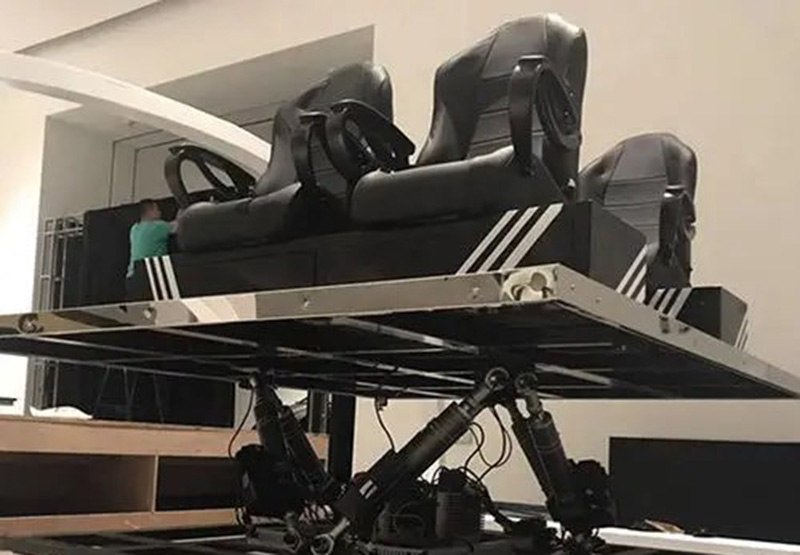

| 4. Open platform: provide basic development platform, on which various training simulators can be freely developed, such as flight simulator, ship simulator, naval helicopter take-off and landing simulation platform, tank simulator, car driving simulator, train driving simulator, earthquake simulator, dynamic movies, entertainment equipment and other fields, and can even be used for docking of space spacecraft and refueling docking of aerial tankers. |
| 5. Configure the latest remote module: it can realize the remote operation and data monitoring of the test platform, and has the function of networked remote automatic diagnosis after-sales service, which can effectively and timely solve the user’s needs. |
| 6. Open data structure: both result parameters and process data can be called randomly by users, which is very convenient for scientific research and teaching; |
| 7. Protection: It has the alarm and shutdown functions of oil circuit blockage, overtemperature, low liquid level, overload of hydraulic system, overheating of motor and preset fatigue times. |
Key Parts
1. Select German haenchen hydraulic cylinder
2. Adopt American Delta controller
3. American MOOG servo valve
4. American MTS magnetostrictive displacement sensor
6. Enpuda produces hydraulic silent hydraulic servo oil source (powertrain) Low noise, stable operation, excellent durability and long life
